F16/F59 Oblong Punch & Die Set - 6 Pack
CPDS0171
Regular price $395.00Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 6 F16 Oblong Punches, 6 F59 Oblong Dies, Half Pint of Punch-Easy®, and Toolbox.

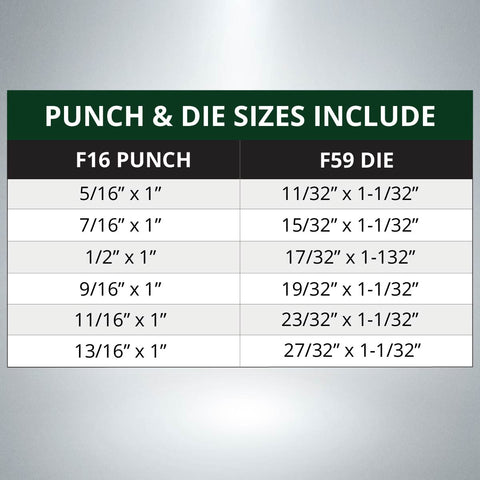

Punch & Die Sizes Include:
| F16 Punch | 5/16" x 1", 7/16" x 1", 1/2" x 1", 9/16" x 1", 11/16" x 1", 13/16" x 1" |
| F59 Die | 11/32" x 1-1/32", 15/32" x 1-1/32", 17/32" x 1-1/32", 19/32" x 1-1/32", 23/32" x 1-1/32", 27/32" x 1-1/32" |
F16 Punch Dimensions:
Head Diameter: 1.250"
Body Diameter: 1.062"
Overall Length: 2.125"
F59 Die Dimensions:
Outside Diameter: 2.000"
Height: 1.000"
Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note:
Material thickness should not exceed punch size.
Cross Reference:
| F16 Punch | AP-119, CST-219, GFM-37, PIR-DH |
| F59 Die | AP-317, CST-417, GFM-82, PIR-JC |
