F20 Hexagon Punch with 1/4" x 1/8" Cross Keyway
F20 Hexagon Punch with 1/4" x 1/8" Cross Keyway
F20 Hexagon Punch with 1/4" x 1/8" Cross Keyway
F20 Hexagon Punch with 1/4" x 1/8" Cross Keyway

F20 Hexagon Punch with 1/4" x 1/8" Cross Keyway

0020P070343H

Regular price $69.95 Save $-69.95
0 in stock

Punches are supplied with a 1/4" wide x 1/8" deep cross keyway. Use 1/4" x 1/4" Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F55 and F59 Hexagon Dies.

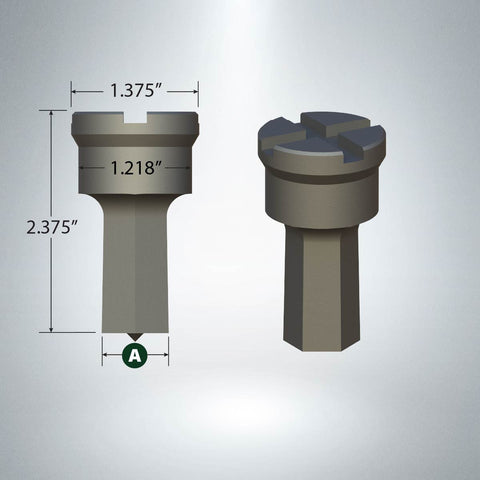

Dimensions:
Head Diameter: 1.375"
Body Diameter: 1.218"
Overall Length: 2.375"

Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.

Note:
Material thickness should not exceed the smallest punch size.

Cross Reference:

F20 Punch AP-121, CST-221, GFM-40, PIR-EA, SCOT-40
