F26 Square Punch - No Keyway

F26 Square Punch - No Keyway

F26 Square Punch - No Keyway

F26 Square Punch - No Keyway

F26 Square Punch - No Keyway

0026P030312

$59.00

[{"id":39654923042869,"title":"5\/16\"","option1":"5\/16\"","option2":null,"option3":null,"sku":"0026P030312","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 5\/16\"","public_title":"5\/16\"","options":["5\/16\""],"price":5900,"weight":363,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923075637,"title":"11\/32\"","option1":"11\/32\"","option2":null,"option3":null,"sku":"0026P030343","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 11\/32\"","public_title":"11\/32\"","options":["11\/32\""],"price":5900,"weight":363,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923108405,"title":"3\/8\"","option1":"3\/8\"","option2":null,"option3":null,"sku":"0026P030375","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 3\/8\"","public_title":"3\/8\"","options":["3\/8\""],"price":5900,"weight":363,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923141173,"title":"13\/32\"","option1":"13\/32\"","option2":null,"option3":null,"sku":"0026P030406","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 13\/32\"","public_title":"13\/32\"","options":["13\/32\""],"price":5900,"weight":363,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923173941,"title":"7\/16\"","option1":"7\/16\"","option2":null,"option3":null,"sku":"0026P030437","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 7\/16\"","public_title":"7\/16\"","options":["7\/16\""],"price":5900,"weight":363,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923206709,"title":"15\/32\"","option1":"15\/32\"","option2":null,"option3":null,"sku":"0026P030468","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 15\/32\"","public_title":"15\/32\"","options":["15\/32\""],"price":5900,"weight":386,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923239477,"title":"1\/2\"","option1":"1\/2\"","option2":null,"option3":null,"sku":"0026P030500","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 1\/2\"","public_title":"1\/2\"","options":["1\/2\""],"price":5900,"weight":386,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923272245,"title":"17\/32\"","option1":"17\/32\"","option2":null,"option3":null,"sku":"0026P030531","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 17\/32\"","public_title":"17\/32\"","options":["17\/32\""],"price":5900,"weight":386,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923305013,"title":"9\/16\"","option1":"9\/16\"","option2":null,"option3":null,"sku":"0026P030562","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 9\/16\"","public_title":"9\/16\"","options":["9\/16\""],"price":5900,"weight":409,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923337781,"title":"19\/32\"","option1":"19\/32\"","option2":null,"option3":null,"sku":"0026P030593","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 19\/32\"","public_title":"19\/32\"","options":["19\/32\""],"price":5900,"weight":409,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923370549,"title":"5\/8\"","option1":"5\/8\"","option2":null,"option3":null,"sku":"0026P030625","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 5\/8\"","public_title":"5\/8\"","options":["5\/8\""],"price":5900,"weight":409,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923403317,"title":"21\/32\"","option1":"21\/32\"","option2":null,"option3":null,"sku":"0026P030656","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 21\/32\"","public_title":"21\/32\"","options":["21\/32\""],"price":5900,"weight":409,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923436085,"title":"11\/16\"","option1":"11\/16\"","option2":null,"option3":null,"sku":"0026P030687","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 11\/16\"","public_title":"11\/16\"","options":["11\/16\""],"price":5900,"weight":409,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923468853,"title":"23\/32\"","option1":"23\/32\"","option2":null,"option3":null,"sku":"0026P030718","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 23\/32\"","public_title":"23\/32\"","options":["23\/32\""],"price":5900,"weight":431,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923501621,"title":"3\/4\"","option1":"3\/4\"","option2":null,"option3":null,"sku":"0026P030750","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 3\/4\"","public_title":"3\/4\"","options":["3\/4\""],"price":5900,"weight":431,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923534389,"title":"25\/32\"","option1":"25\/32\"","option2":null,"option3":null,"sku":"0026P030781","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 25\/32\"","public_title":"25\/32\"","options":["25\/32\""],"price":5900,"weight":431,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923599925,"title":"13\/16\"","option1":"13\/16\"","option2":null,"option3":null,"sku":"0026P030812","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 13\/16\"","public_title":"13\/16\"","options":["13\/16\""],"price":5900,"weight":454,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923632693,"title":"7\/8\"","option1":"7\/8\"","option2":null,"option3":null,"sku":"0026P030875","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 7\/8\"","public_title":"7\/8\"","options":["7\/8\""],"price":5900,"weight":454,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923665461,"title":"15\/16\"","option1":"15\/16\"","option2":null,"option3":null,"sku":"0026P030937","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 15\/16\"","public_title":"15\/16\"","options":["15\/16\""],"price":5900,"weight":477,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923698229,"title":"1\"","option1":"1\"","option2":null,"option3":null,"sku":"0026P031000","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 1\"","public_title":"1\"","options":["1\""],"price":5900,"weight":499,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654923730997,"title":"1-1\/16\"","option1":"1-1\/16\"","option2":null,"option3":null,"sku":"0026P031062","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F26 Square Punch - No Keyway - 1-1\/16\"","public_title":"1-1\/16\"","options":["1-1\/16\""],"price":5900,"weight":522,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}]

Punches are supplied with no keyway. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F62 Square Dies.

*For carriage bolt and square tube applications we recommend using a square punch 1/32" larger than the size of carriage bolt or square tube.

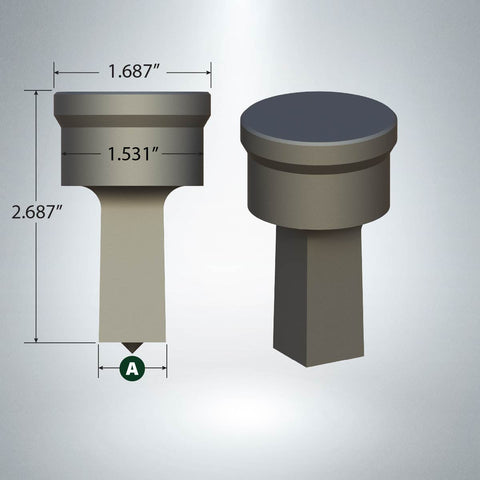

Dimensions:
Head Diameter: 1.687"
Body Diameter: 1.531"
Overall Length: 2.687"

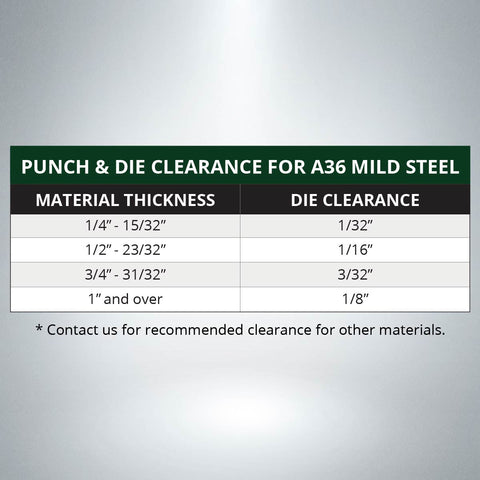

Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.

Note:
Material thickness should not exceed punch size.

Cross Reference:

F26 Punch

AP-128, CST-228, GFM-45, PIR-EF

made in the usa

Proudly Made in the USA

Related Products

¡Bienvenido a Cleveland Punch and Die!

Fabricamos punzones, matrices, hojas de cizalla y accesorios para ferreteros y diversas punzonadoras. Contamos con el apoyo para atender a clientes fuera de los Estados Unidos y enviar nuestros productos a nivel internacional. Nuestro equipo también está en "WhatsApp", lo que nos permite comunicarnos directamente con cualquier persona, en cualquier parte del mundo. Haga clic aquí para obtener más información o ponerse en contacto con representate de servicio al cliente.

WAIT

Punches and dies should NOT be the same size!

There is no clearance between the sizes you have selected and this will result in the punch and die colliding.

Refer to the chart below to determine the correct clearance per material thickness.
