F16 Square Punch with 4mm Single Keyway

F16 Square Punch with 4mm Single Keyway

F16 Square Punch with 4mm Single Keyway

F16 Square Punch with 4mm Single Keyway

F16 Square Punch with 4mm Single Keyway

0016P030218C

$57.00

[{"id":39654918848565,"title":"7\/32\"","option1":"7\/32\"","option2":null,"option3":null,"sku":"0016P030218C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 7\/32\"","public_title":"7\/32\"","options":["7\/32\""],"price":5700,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654918881333,"title":"1\/4\"","option1":"1\/4\"","option2":null,"option3":null,"sku":"0016P030250C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 1\/4\"","public_title":"1\/4\"","options":["1\/4\""],"price":5700,"weight":137,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654918914101,"title":"9\/32\"","option1":"9\/32\"","option2":null,"option3":null,"sku":"0016P030281C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 9\/32\"","public_title":"9\/32\"","options":["9\/32\""],"price":5700,"weight":137,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654918946869,"title":"5\/16\"","option1":"5\/16\"","option2":null,"option3":null,"sku":"0016P030312C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 5\/16\"","public_title":"5\/16\"","options":["5\/16\""],"price":5700,"weight":137,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654918979637,"title":"11\/32\"","option1":"11\/32\"","option2":null,"option3":null,"sku":"0016P030343C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 11\/32\"","public_title":"11\/32\"","options":["11\/32\""],"price":5700,"weight":137,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919012405,"title":"3\/8\"","option1":"3\/8\"","option2":null,"option3":null,"sku":"0016P030375C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 3\/8\"","public_title":"3\/8\"","options":["3\/8\""],"price":5700,"weight":137,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919045173,"title":"13\/32\"","option1":"13\/32\"","option2":null,"option3":null,"sku":"0016P030406C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 13\/32\"","public_title":"13\/32\"","options":["13\/32\""],"price":5700,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919077941,"title":"7\/16\"","option1":"7\/16\"","option2":null,"option3":null,"sku":"0016P030437C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 7\/16\"","public_title":"7\/16\"","options":["7\/16\""],"price":5700,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919110709,"title":"15\/32\"","option1":"15\/32\"","option2":null,"option3":null,"sku":"0016P030468C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 15\/32\"","public_title":"15\/32\"","options":["15\/32\""],"price":5700,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919143477,"title":"1\/2\"","option1":"1\/2\"","option2":null,"option3":null,"sku":"0016P030500C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 1\/2\"","public_title":"1\/2\"","options":["1\/2\""],"price":5700,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919209013,"title":"17\/32\"","option1":"17\/32\"","option2":null,"option3":null,"sku":"0016P030531C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 17\/32\"","public_title":"17\/32\"","options":["17\/32\""],"price":5700,"weight":182,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919241781,"title":"9\/16\"","option1":"9\/16\"","option2":null,"option3":null,"sku":"0016P030562C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 9\/16\"","public_title":"9\/16\"","options":["9\/16\""],"price":5700,"weight":182,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919274549,"title":"19\/32\"","option1":"19\/32\"","option2":null,"option3":null,"sku":"0016P030593C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 19\/32\"","public_title":"19\/32\"","options":["19\/32\""],"price":5700,"weight":182,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919307317,"title":"5\/8\"","option1":"5\/8\"","option2":null,"option3":null,"sku":"0016P030625C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 5\/8\"","public_title":"5\/8\"","options":["5\/8\""],"price":5700,"weight":182,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919340085,"title":"21\/32\"","option1":"21\/32\"","option2":null,"option3":null,"sku":"0016P030656C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 21\/32\"","public_title":"21\/32\"","options":["21\/32\""],"price":5700,"weight":182,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919372853,"title":"11\/16\"","option1":"11\/16\"","option2":null,"option3":null,"sku":"0016P030687C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 11\/16\"","public_title":"11\/16\"","options":["11\/16\""],"price":5700,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919405621,"title":"23\/32\"","option1":"23\/32\"","option2":null,"option3":null,"sku":"0016P030718C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 23\/32\"","public_title":"23\/32\"","options":["23\/32\""],"price":5700,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919438389,"title":"3\/4\"","option1":"3\/4\"","option2":null,"option3":null,"sku":"0016P030750C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 3\/4\"","public_title":"3\/4\"","options":["3\/4\""],"price":5700,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919471157,"title":"25\/32\"","option1":"25\/32\"","option2":null,"option3":null,"sku":"0016P030781C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 25\/32\"","public_title":"25\/32\"","options":["25\/32\""],"price":5700,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":39654919503925,"title":"13\/16\"","option1":"13\/16\"","option2":null,"option3":null,"sku":"0016P030812C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Square Punch with 4mm Single Keyway - 13\/16\"","public_title":"13\/16\"","options":["13\/16\""],"price":5700,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}]

Punches are supplied with a 4mm wide x 4mm deep single keyway. Use 4mm x 6mm Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F55 and F59 Square Dies.

*For carriage bolt and square tube applications we recommend using a square punch 1/32" larger than the size of carriage bolt or square tube.

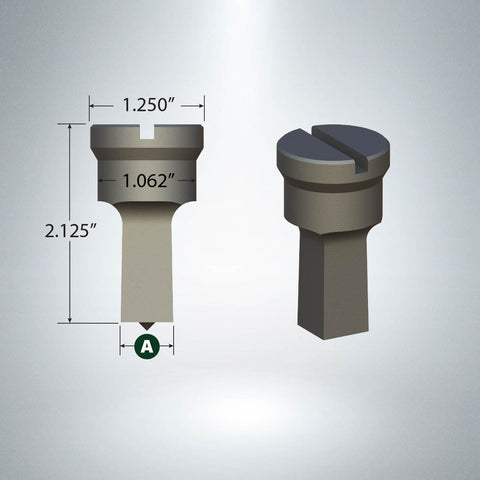

Dimensions:
Head Diameter: 1.250"
Body Diameter: 1.062"
Overall Length: 2.125"

Punch & Die Clearance:

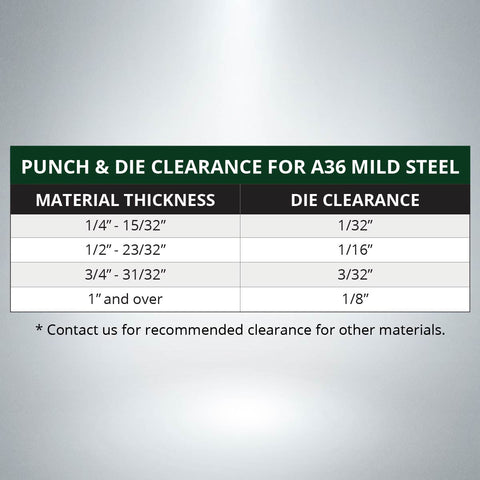

Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.

Note:
Material thickness should not exceed punch size.

Cross Reference:

F16 Punch

AP-119, CST-219, GFM-37, PIR-DH

made in the usa

Proudly Made in the USA
