F16 Hexagon Punch with 4mm Cross Keyway

F16 Hexagon Punch with 4mm Cross Keyway

F16 Hexagon Punch with 4mm Cross Keyway

F16 Hexagon Punch with 4mm Cross Keyway

F16 Hexagon Punch with 4mm Cross Keyway

0016P070343D

$63.95

[{"id":41403005173813,"title":"11\/32\"","option1":"11\/32\"","option2":null,"option3":null,"sku":"0016P070343D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 11\/32\"","public_title":"11\/32\"","options":["11\/32\""],"price":6395,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005206581,"title":"3\/8\"","option1":"3\/8\"","option2":null,"option3":null,"sku":"0016P070375D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 3\/8\"","public_title":"3\/8\"","options":["3\/8\""],"price":6395,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005239349,"title":"13\/32\"","option1":"13\/32\"","option2":null,"option3":null,"sku":"0016P070406D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 13\/32\"","public_title":"13\/32\"","options":["13\/32\""],"price":6395,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005272117,"title":"7\/16\"","option1":"7\/16\"","option2":null,"option3":null,"sku":"0016P070437D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 7\/16\"","public_title":"7\/16\"","options":["7\/16\""],"price":6395,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005304885,"title":"15\/32\"","option1":"15\/32\"","option2":null,"option3":null,"sku":"0016P070468D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 15\/32\"","public_title":"15\/32\"","options":["15\/32\""],"price":6395,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005337653,"title":"1\/2\"","option1":"1\/2\"","option2":null,"option3":null,"sku":"0016P070500D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 1\/2\"","public_title":"1\/2\"","options":["1\/2\""],"price":6395,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005370421,"title":"17\/32\"","option1":"17\/32\"","option2":null,"option3":null,"sku":"0016P070531D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 17\/32\"","public_title":"17\/32\"","options":["17\/32\""],"price":6395,"weight":182,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005403189,"title":"9\/16\"","option1":"9\/16\"","option2":null,"option3":null,"sku":"0016P070562D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 9\/16\"","public_title":"9\/16\"","options":["9\/16\""],"price":6395,"weight":182,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005435957,"title":"19\/32\"","option1":"19\/32\"","option2":null,"option3":null,"sku":"0016P070593D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 19\/32\"","public_title":"19\/32\"","options":["19\/32\""],"price":6395,"weight":182,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005468725,"title":"5\/8\"","option1":"5\/8\"","option2":null,"option3":null,"sku":"0016P070625D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 5\/8\"","public_title":"5\/8\"","options":["5\/8\""],"price":6395,"weight":182,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005501493,"title":"21\/32\"","option1":"21\/32\"","option2":null,"option3":null,"sku":"0016P070656D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 21\/32\"","public_title":"21\/32\"","options":["21\/32\""],"price":6395,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005534261,"title":"11\/16\"","option1":"11\/16\"","option2":null,"option3":null,"sku":"0016P070687D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 11\/16\"","public_title":"11\/16\"","options":["11\/16\""],"price":6395,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005567029,"title":"23\/32\"","option1":"23\/32\"","option2":null,"option3":null,"sku":"0016P070718D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 23\/32\"","public_title":"23\/32\"","options":["23\/32\""],"price":6395,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005599797,"title":"3\/4\"","option1":"3\/4\"","option2":null,"option3":null,"sku":"0016P070750D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 3\/4\"","public_title":"3\/4\"","options":["3\/4\""],"price":6395,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005632565,"title":"25\/32\"","option1":"25\/32\"","option2":null,"option3":null,"sku":"0016P070781D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 25\/32\"","public_title":"25\/32\"","options":["25\/32\""],"price":6395,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":41403005665333,"title":"13\/16\"","option1":"13\/16\"","option2":null,"option3":null,"sku":"0016P070812D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"F16 Hexagon Punch with 4mm Cross Keyway - 13\/16\"","public_title":"13\/16\"","options":["13\/16\""],"price":6395,"weight":205,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}]

Punches are supplied with a 4mm wide x 4mm deep cross keyway. Use 4mm x 6mm Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F55 and F59 Hexagon Dies.

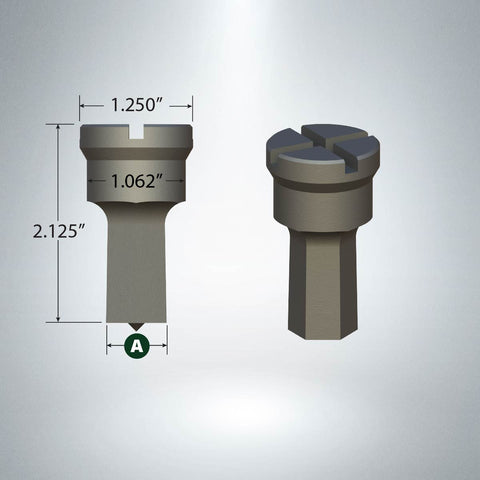

Dimensions:
Head Diameter: 1.250"
Body Diameter: 1.062"
Overall Length: 2.125"

Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.

Note:
Material thickness should not exceed the smallest punch size.

Cross Reference:

F16 Punch

AP-119, CST-219, GFM-37, PIR-DH

made in the usa

Proudly Made in the USA

Related Products

¡Bienvenido a Cleveland Punch and Die!

Fabricamos punzones, matrices, hojas de cizalla y accesorios para ferreteros y diversas punzonadoras. Contamos con el apoyo para atender a clientes fuera de los Estados Unidos y enviar nuestros productos a nivel internacional. Nuestro equipo también está en "WhatsApp", lo que nos permite comunicarnos directamente con cualquier persona, en cualquier parte del mundo. Haga clic aquí para obtener más información o ponerse en contacto con representate de servicio al cliente.

WAIT

Punches and dies should NOT be the same size!

There is no clearance between the sizes you have selected and this will result in the punch and die colliding.

Refer to the chart below to determine the correct clearance per material thickness.
