F16 Corner Radius Punch - No Keyway
F16 Corner Radius Punch - No Keyway
F16 Corner Radius Punch - No Keyway
F16 Corner Radius Punch - No Keyway
F16 Corner Radius Punch - No Keyway
F16 Corner Radius Punch - No Keyway
F16 Corner Radius Punch - No Keyway
F16 Corner Radius Punch - No Keyway

F16 Corner Radius Punch - No Keyway

0016P170387

Regular price $157.50 Save $-157.50
-5 in stock

All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F55 and F59 Corner Radius Dies.

*Punch and Die should be the same size.

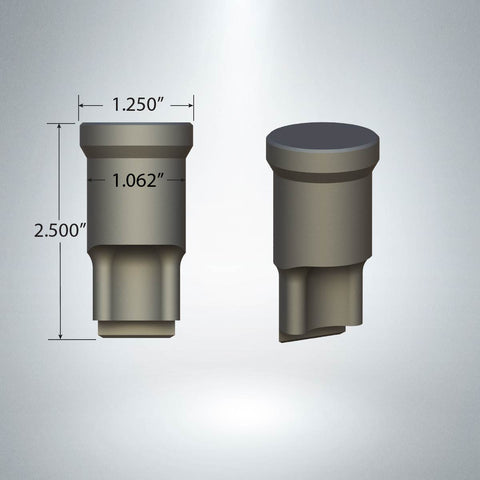

Dimensions:
Head Diameter: 1.250"
Body Diameter: 1.062"
Overall Length: 2.500"

Punch & Die Clearance:
Corner Radius Tooling has a standard .024" clearance.

Note:
Material thickness should NOT exceed 1/4".

Cross Reference:

F16 Punch AP-119, CST-219, GFM-37, PIR-DH

made in the usaProudly Made in the USA
